Lecture 5

Nikolaus Huber

Memory Management

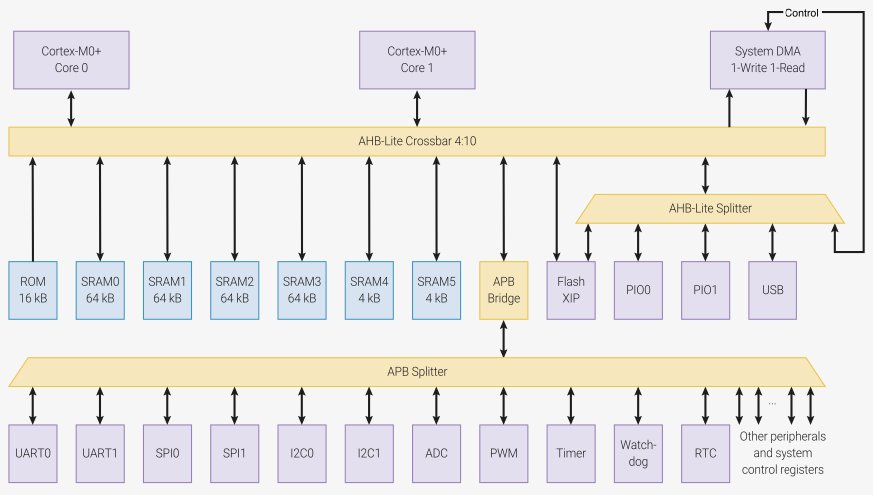

Memory Architecture

• µCs often use a Harvard architecture
• Separate memory + buses for code (ROM) and data (RAM)
• Code is usually executed in place (XIP), not copied to RAM before execution
• Some amount of RAM/ROM is integrated in the µC
• Usually more ROM than RAM
• Can be extended through external memory if needed
• RP2040 actually relies on external ROM

Read-only Memory (ROM)

• Used to store code + constant data (e.g. lookup tables)
• Unrestricted reading, usually difficult to write
• Most common (today): Flash memory
• Other kinds do exist: PROM, UV-EPROM, EEPROM
• Pico Board has 2MB of Flash (external)

Random-Access Memory (RAM)

• Used for data (e.g. stack, heap)
• Can also be use for code (more uncommon)
• Two main kinds in use today: SRAM, DRAM
• Can be accessed through caches
• Not so common for internal RAM in µC (why?)

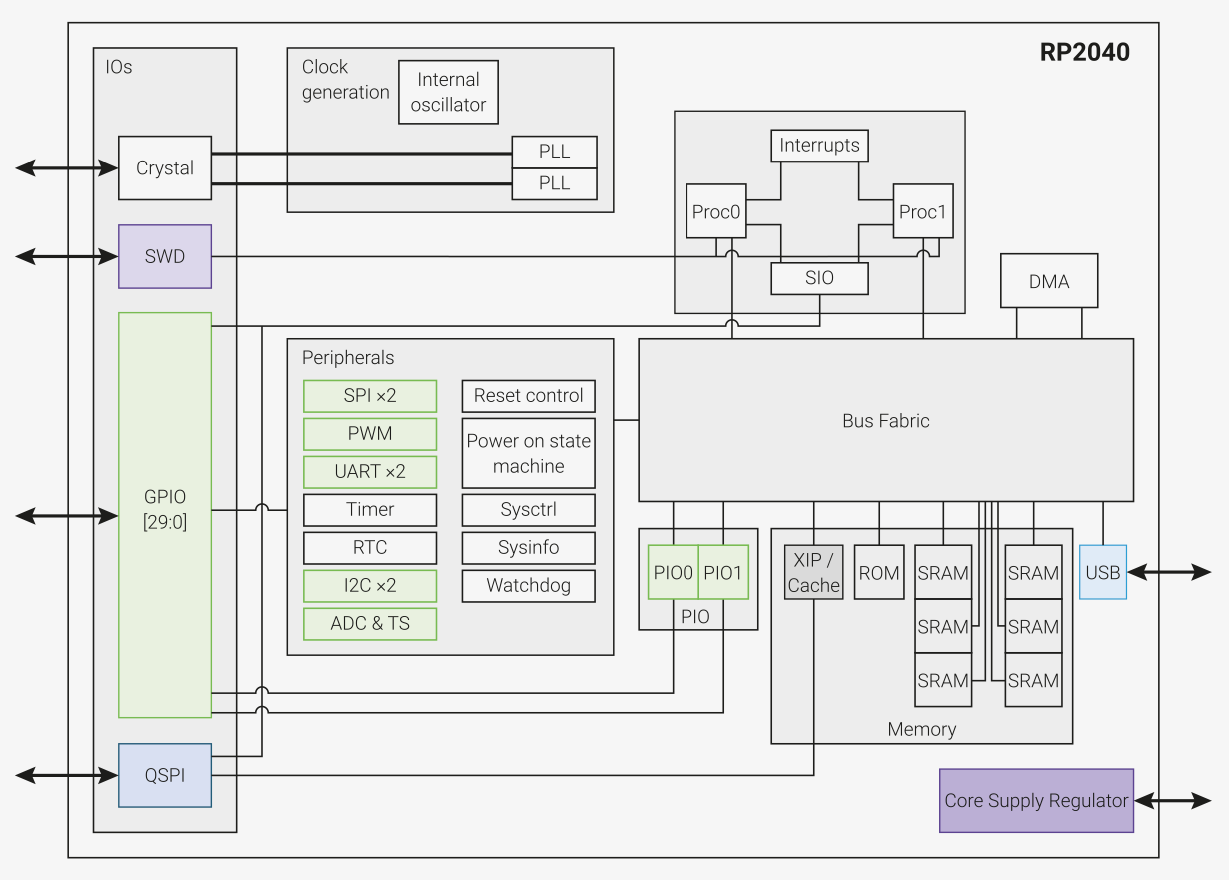

• RP2040 has 265kB on-chip SRAM

ARM Cortex-M0 layout

• Processor has a fixed memory map providing up to 4GB of addressable memory
• RAM, ROM, peripheral registers, ... are mapped into different memory regions
• Details depend on the implemenentation of the chip
• For example: Section 2.2. Address Map (RP2040 datasheet)

Read - Modify - Write

• We often want to set a single bit in a register
• Typically, a CPU cannot write individual bits, only entire bytes or even words
• If we want to set a single bit, we need to
• Read the whole register
• Modify one bit (i.e., do some logic operation)
• Write the modified value back into the register
• This is not atomic!

Solution 1 - Bit-Banding

• Optional feature of ARM Cortex-M3 and M4 µCs
• 1MB of bit-band region is mapped to 32MB alias region
• Each bit in bit-band region corresponds to a full word in alias region
• We can set a single bit by writing a full word in the alias region
• We can read a single bit by reading from the alias region
• Used for example by STM32 chips
• More info: ARM Developer Manual

Solution 2 - Bit Set and Clear Registers

• Used by RP2040
• A register with multiple bit fields has dedicated SET and CLR registers
• Writing a word to SET will set all bits in the main register that are set in the word
• Writing a word to CLR will clear all bits in the main register that are set in the word
• Main register might not even be visible/accessible!

Ways to manage memory

• At compile time (statically)
• At startup time
• At runtime (dynamically)

Management at compile time

• Compiler/Linker creates segments for different kinds of data/code
• Code (.text)
• Read-only data (.rodata)
• Read-write data (.data)
• Zero-initialized read-write data (.bss)
• More segments possible, depends on implementation and compiler/linker
• Code/data is flashed to µC, RAM is initialized during start-up

Management at compile time

• Mapping of data to segments can be automatic (static, const) or explicit (compiler specific, gcc: #pragma)
• Layout of segments in memory can be chosen in linker file
• Examples (assume global variables)
• char rwData[100]; => .bss, RAM
• char raData[3] = {1, 2, 3}; => .data, RAM
• const char roData[3] = {1, 2, 3}; => .rodata/.constdata, ROM

Example - Linker file

Memory in embedded systems

• Most common way of memory management
• Allocate all required memory at compile time
• Sometimes enforced by coding standards
• Little risk of runtime errors due to memory management problems
• Dynamic memory management
• Manual management: malloc( ), free( )
• More flexible, might be necessary in some cases

Dynamic memory management

• Can cause various problems
• Possibly insufficient memory during runtime
• Fragmentation
• Implementation of malloc and free can be of substantial size
• Are malloc and free reentrant functions?
• Sometimes compromise: no free, only use malloc during start-up
• Easier to test and verify

Malloc and free

• Often implemented by the (RT)OS
• FreeRTOS
• Heap_1: only malloc, no free
• Heap_2: malloc + free
• Heap_3: malloc + free, both thread-safe
• Heap_4: same as Heap_3, but tries to avoid fragmentation
• Zephyr
• Heaps can be created with K_HEAP_DEFINE
• Can use k_heap_alloc and k_heap_free
• Use of libc malloc and free is discouraged
• For more info look into the Zephyr documentation!

Task stack overflow detection

• Canaries
• Initially write some known data/pattern to the end of the stack
• Periodically check wether that data is still there
• In Zephyr => CONFIG_STACK_SENTINEL, gets checked at
• Context switch
• Hardware interrupts
• Thread returns from entry point
• k_yield
• In Zephyr only used when there is no MPU

Processor modes

• ARM processor has multiple processor modes
• Thread mode
• For executing applications
• SW can be executed as privileged or unpriviledged
• Handler mode
• Entered as a result of an exception, always in privileged
• Processor returns to Thread mode when it has finished exception handling

Software execution modes

• Unpriviledged mode
• Limited access to instructions (cannot change processor state for example)
• Cannot access the sytem timer, NVIC, or system control registers
• Might have restricted access to memory or peripherals
• Privileged mode
• Software can use all instructions and has access to all resources
• Unpriviledged SW usually requests OS services by issuing a software interrupt => change to handler mode

ARM Operation Modes

Memory protection unit

• Allows access rules to be set up for privileged access and user program access
• When an access rule is violated => fault exception
• Example usages:
• MPU can protect data that belongs to the OS from user programs
• MPU can set certain memory regions read-only to prevent accidentally erasing configuration data
• MPU can shield different tasks in a multitasking system
• More info: ARM Developer Manual
