Lecture 7

Nikolaus Huber

Optimization

Outline

• Recap on Complexity
• Space-Time spectrum
• Measuring & Profiling
• Low-level optimization

Premature optimization is the root of all evil

Donald Knuth

Asymptotic complexity

• How does our code scale for different inputs?
• How do our algorithms scale?
• Are we interested in worst, average, or best case?
• Are we interested in processing time or memory requirement?

Recap: Landau Notation

• $O(g(n))$ is the set of all functions that grow at most as quickly as g
• For example: $2n^2 + n + 42 \in O(n^2)$
• More commonly: $2n^2 + n + 42 = O(n^2)$

Example: Sorting algorithms

O - Notation

• Is idependent of the unit of measure of time
• Absolute runtime (ms, µs, ...)
• Number of instructions
• Number of cycles
• All just some constant factors aparts
• Only captures scalability
• Gives idea of performance when input becomes arbitrarily large
• Does not tell anything about runtime for fixed input
• Worst-case often extremely unrealistic (but important for real-time)

Average vs Worst case

• Average runtime
• Expected runtime for an algorithm given a randomly chosen input of size n
• Tends to be more difficult to derive than worst-case
• Very often determined through simulation and measurement

Example: Sorting algorithms

Algorithm vs problem complexity

• Complexity of a problem = complexity of an optimal algorithm solving it
• E.g., sorting has complexity $O(n\;log(n))$

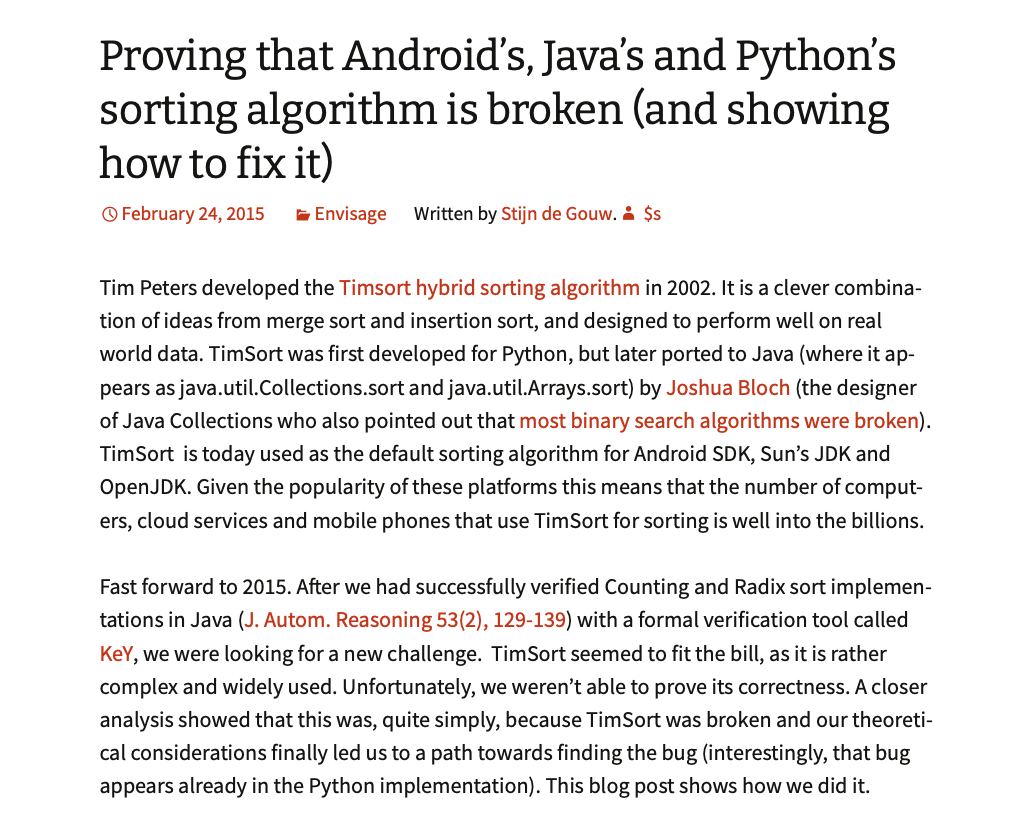

• Currently we cannot do better than Merge-sort/Tim-Sort in the general case
• For special inputs we can do better
• Restricting the data domain can help (e.g. Dutch Flag Sorting Algorithm)

Data structures vs algorithms

• DS complementary aspect to algorithm complexity
• DS are often considered more important in algorithm design
• Performance of DS operations has drastic impact on algorithm performance
• Often many choices (e.g. double linked lists, arrays, trees, hash tables, ...)
• Generally more difficult to change DS later in development

Data structures

• Each DS comes with a set of operations
• Complixity of these operations often depends on the size of the DS

Conclusion

• There is no general best algorithm or best data structure
• Have to make decisions based on
• Concrete requirements
• Expected data size
• Expected data distribution
• Expected update/insert rate
• ...

Space - Time - Tradeoff

• We can often choose whether an implementation
• Uses more meory, but needs less computation
• Uses more computation, but needs less memory
• Choice has to be informed by context, no general solution
• Most of the following aspects can be understood as space-time-tradeoffs

Look - Up Tables

• Pre-computed and stored in memory
• Data is accessed often
• Examples
• Trigonometric functions (sin, cos)
• Hash-code tables
• ...
• More space, less computation

Images, Fonts, Bitmaps, ...

• Can be stored in different ways
• Raw format
• Compressed format
• Similar for other kinds of data (audio, text, ...)

Packed/Padded Representation

• Individual bits can be stored in different ways
• Packed: bits are grouped together
• Padded: reserve whole byte/word for each bit
• Bit banding is similar to padded representation

Bit fields

• Feature of C to store bit-vectors of any size in a struct
• Normally uses packed representation
• E.g., the following only needs one 32-bit word:

		struct X {
			int x:10; // 10-bit int
			int y:20; // 20-bit int
		};


Related topic: Alignment

• On some architectures, addresses of int/short/char variables must be aligned to word boundries
• This is taken care of by the compiler
• C - Standard forbidds the compiler from reordering struct fields though

		struct X {
			short	a; // 2 bytes
			char 	b; // 1 byte
			int 	c; // 4 bytes
		};


Alignment

• On fully aligned architectures, variables need to be aligned to word boundries
• I.e., on 32-bit machines, all addresses are multiples of 4
• Mostly outdated today
• On self aligned architectures, addresses of n-byte types have to be multiples of n
• int addresses => 4, short => 2, char => 1
• To save space, fields in struct can be sorted (from biggest to smallest)
• Again, compiler is not allowed to re-order the fields (must be done manually)

Alignment on ARM Cortex

• Can also handle unaligned variables
• Load / store to unaligned variables are slower than accesses to aligned variables

Size of machine code

• How many bytes to save one machine instruction?
• Depends, different ARM instruction sets:
• Original ARM 32-bit ISA
• Reduced Thumb 16-bit ISA
• Thumb-2, mixed size (16 + 32 bit)

Memory and caches

• Some architectures use multiple levels of caches to speed up memory access
• As said before, not that relevant for us
• Smaller µCs usually don't have complicated cache structure
• Caches make WCET prediction even harder
• Sometimes: Scratchpad memories

Optimizing Code

• Efficiency normally considered late in development
• Better to focus on readability and maintainability first
• Once a program is functionally complete, we can focus on optimization
• Not always possible in that way, some decisions have to be made up front

What to optimize?

• Optimization should always be informed
• Can use a profiler
• Tool to measure time spent in individual functions, blocks, ...
• Can instrument the code
• Sometimes some support from the (RT)OS
• Conduct experiments
• Remove or duplicate code sections

Profilers (1)

• gprof, Tracealyzer, ..., sometimes inbuilt into IDE
• Instrumentation based
• Profiler adds statements to capture time at various code locations
• Affects measured times (maybe drastically)
• Sampling based
• Profiler stops program periodically and records current program counter
• Less precise

Profilers (2)

• Simulation based
• Usually quite slow
• Needs a cycle-accurate simulator for the platform
• Often works with simplified assumptions about the HW
• In-circuit / tracing
• Needs hardware support
• Often implemented internally by sampling

How to eliminate bottlenecks?

• Choose a better suited algorithm or data structure
• Perform low-level optimizations
• Optimization is related to refactoring
• We want to improve the design
• Modifications should not impact functionality of the systems

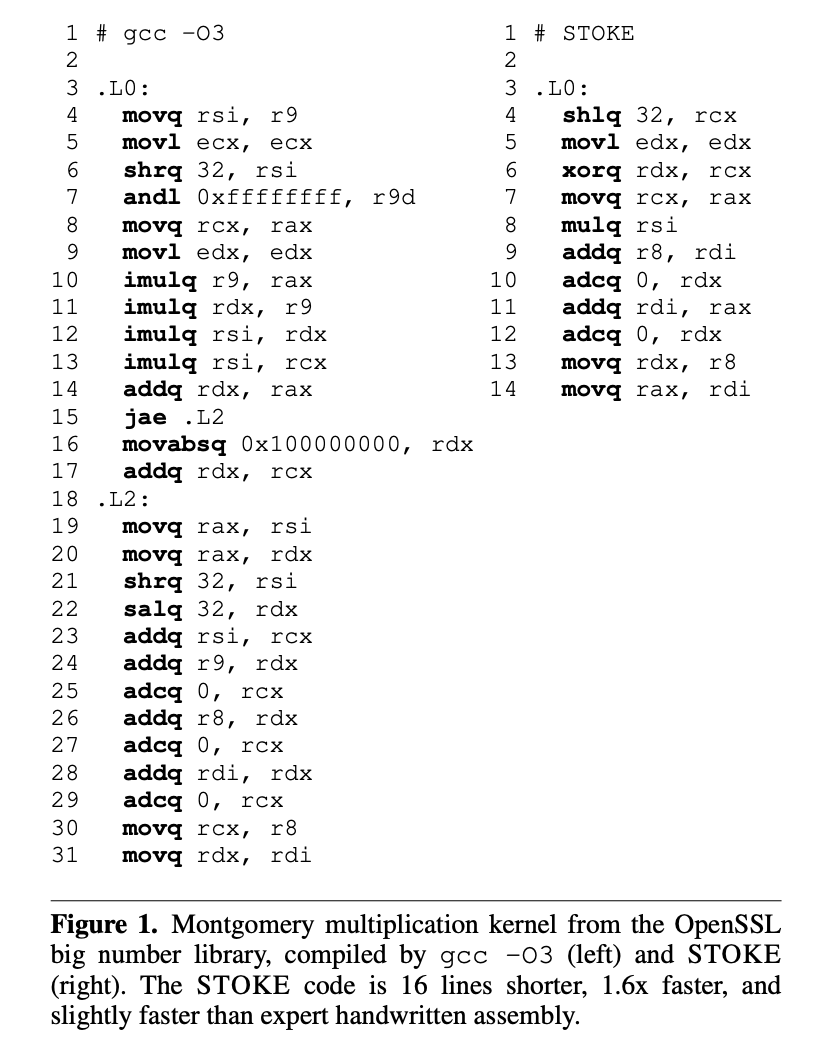

Low-level optimizations

• Use faster instructions (i.e. bit-shifting vs multiplications)
• Use right arithmetic data-types
• Floating point, Fixed point, int
• Can have a significant impact (factor 10)
• Loop optimizations
• Sub-expression elimination
• Inlining
• Algebraic simplificitions

Low-level optimizations

• A lot is handled by the compiler
• Sometimes we need to give hints to the compiler
• E.g., C keywords like inline and register
• ISO TR 18037:2008: Embedded-C standard

Preparation for lab 3

Zephyr Sensor Subsystem

• Zephyr tries to describe applications on a high level
• By developing against Zephyr API => high portability
• Provides unified API for accessing sensors
• Works on channels
  • Measurable quantity
  • Examples: SENSOR_CHAN_ACCEL_X, SENSOR_CHAN_VOLTAGE, SENSOR_CHAN_AMBIENT_TEMP
  • Every channel has a defined unit
